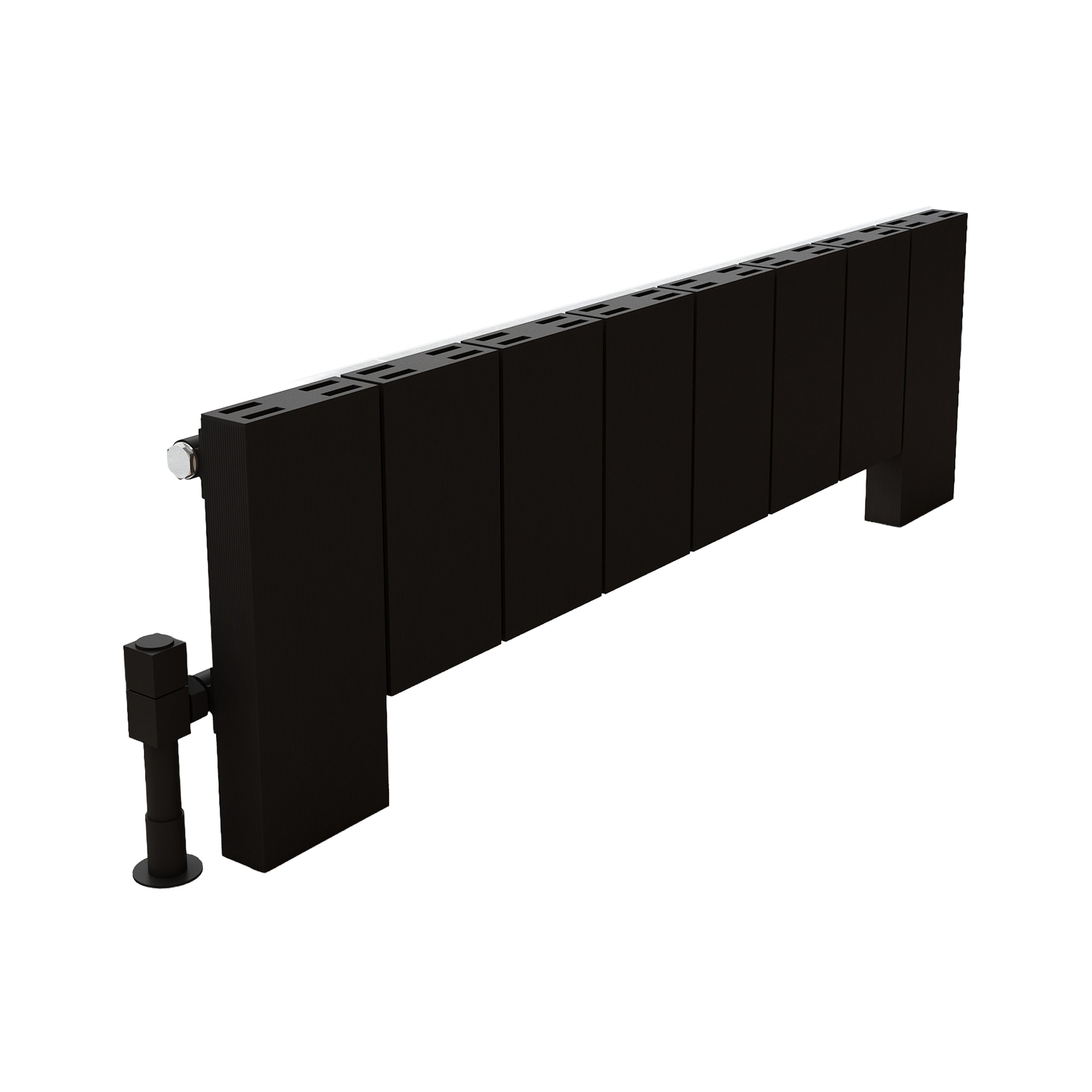

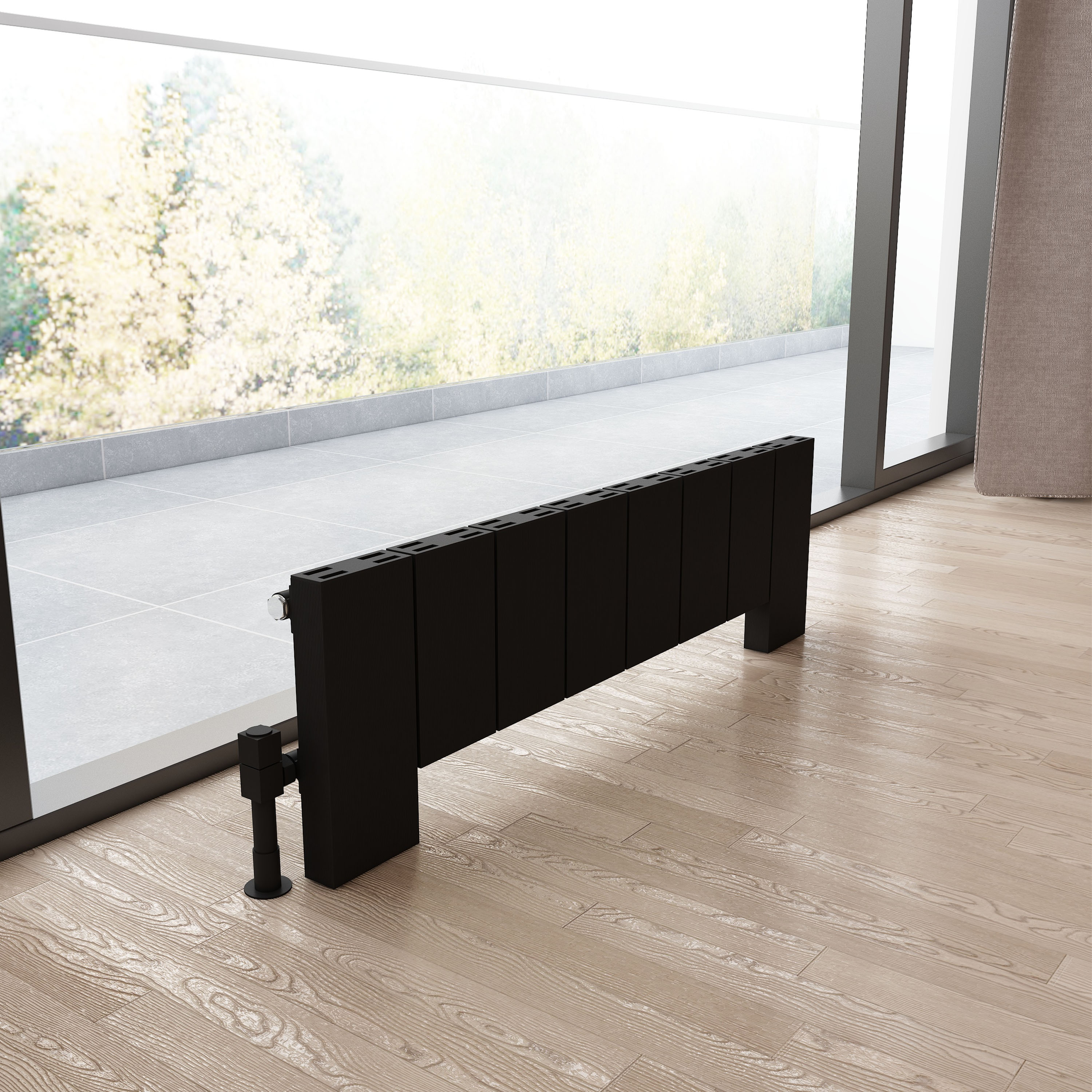

The Carisa Elvino floorstanding panel designer aluminium radiator delivers a bold freestanding design that makes a strong impact in any space. Available in single and double panel options, it allows you to balance heat output and styling to suit the room. Crafted from lightweight aluminium for fast, responsive heating and finished in textured black or textured white, it combines efficient performance with a clean floorstanding form. Designed for standard central heating systems, it provides reliable, high-output heating with flexible configuration options.
The finer details:
The finer details:
- Lightweight aluminium construction for fast heat-up times, excellent responsiveness, and easy handling during installation
- Floorstanding design for a bold freestanding installation
- Available in single or double panel configurations for flexible heat output and visual presence
- Textured black and textured white finishes to suit a range of interior styles
- Works well in bathrooms, bedrooms, kitchens, and living spaces, especially where a floorstanding radiator fits the space
- Compatible with standard central heating systems for straightforward installation
- Use our BTU Calculator to find the right size and heat output for your space
- Heat outputs tested in line with BS EN 442 (ΔT70) standards for certified performance, safety and quality
- Tested up to 10 bar for safe and reliable system performance
- Maximum working temperature of 95°C for consistent heat output
- Standard ½" connections for UK system compatibility

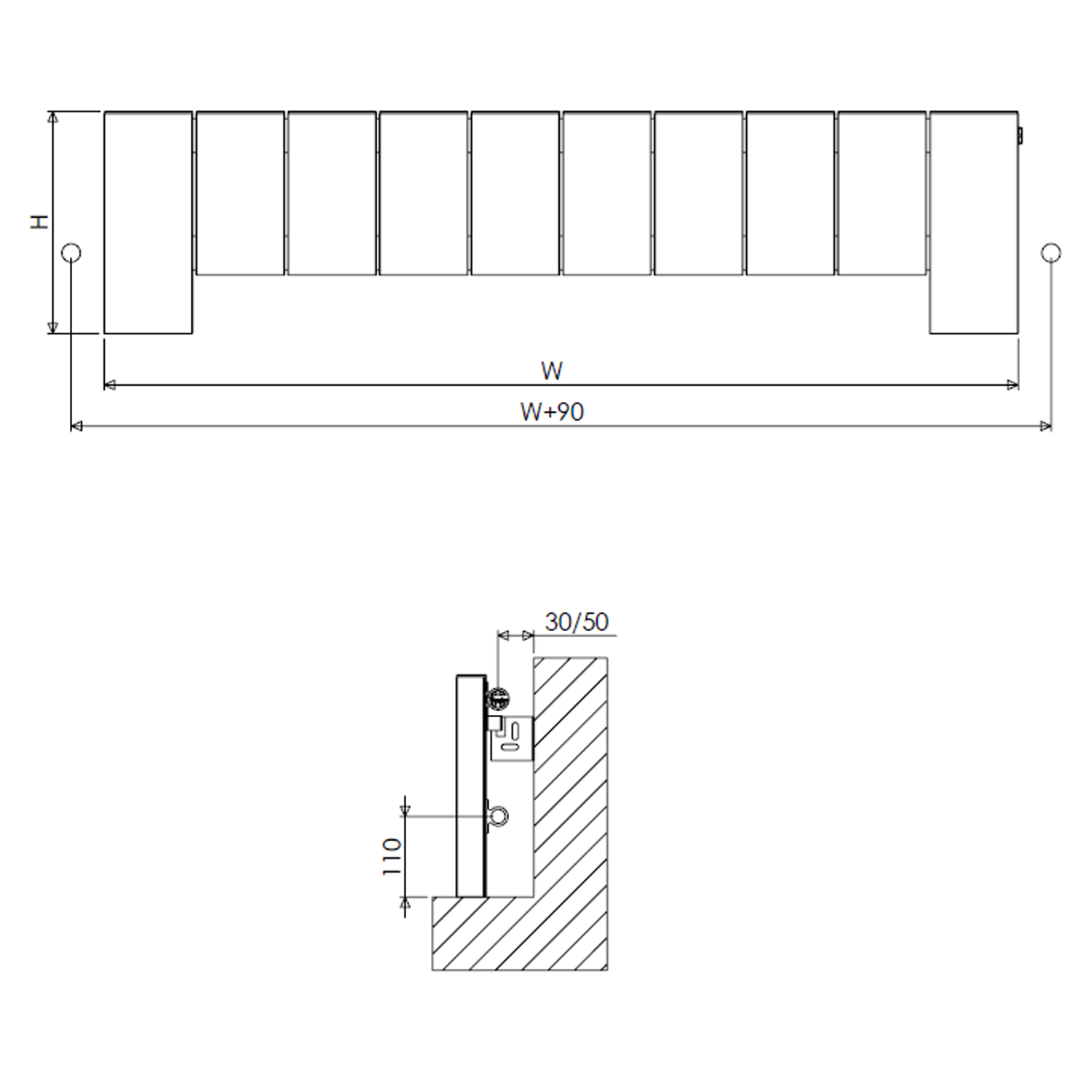

- Pipe centres range from 1085-1585mm for accurate installation alignment
- Wall to face measurement of 85-110mm for a compact, space-efficient fit
- Radiator valves sold separately, please see our recommended extras
- Supplied with floorstanding brackets and fixings for straightforward installation
- Backed by a 5 year manufacturer’s guarantee
 Installation Instructions
|
|---|
| Product Code | 10ELF03000995081110 |
|---|---|
| Type | Designer Horizontal Radiators, Designer Radiators, Double Panel Radiators, Horizontal Radiators, Panel Radiators, Single Panel Radiators |
| Brand | Carisa |
| Brand Range | Carisa Elvino |
| Guarantee |
5 Years |
Guarantee
All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.
To read more about the guarantees we offer, visit our dedicated page or contact our team for more information.
| Fuel Source |
Central Heating |
|---|---|
| Orientation | Horizontal |
| Material | Aluminium |
| Mounting Type | Floor Mounted |
Fuel Source
This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.
Central Heating:
These radiators will generate heat through the water pumped round your central heating system.
Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.
Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.
| Style | Modern |
|---|---|
| Shape | Flat Panel |
| Finish | Textured Black |
| Finish Texture | Matt & Satin |
| RAL Code |
9005 |
RAL Codes
RAL codes are used to define colours for paints & coatings. The codes are very specific, so two shades of blue will have a completely different RAL code. The codes can be useful if you want to ensure two different products will be a colour match.
Some of our heating products can be purchased in bespoke colours chosen from a selection of RAL codes. If you are interested in this service please contact our sales team here.
| Width (mm) | 995 |
|---|---|
| Height (mm) | 300 |
| Depth (mm) | 85 |
| Pipe Centres (mm) |
1085 |
| Columns/Panels | Single Panel |
| Wall to Pipe Centres (mm) |
30 |
| Wall Distance (mm) |
15 |
| Wall to Face (mm) |
85 |
Pipe Centres
This is the distance between the centre of the two pipe inlets on your radiator or towel rail. This figure is an indication of where the two pipes for your radiator will need to go and can be helpful if you want to install a radiator using your existing pipes.
Wall to Pipe Centres
This measurement will show you how far from the wall the centre of the pipes for your radiator will need to be. It is an indication of how far away the pipe inlets for the radiator need to be from the wall which is useful if you are looking to install a radiator using your existing pipework.
Wall Distance
This is a measure of the gap between the back of the radiator and the wall. Wall distance is an indication of how much space there will be behind your radiator.
Wall to Face
Wall to face is the distance from the wall to the furthest point on the front of the radiator. This figure is an indicator of how far your product will protrude into the room.
| Heat Output (BTU∆t 50ºC) |
1239 |
|---|---|
| Heat Output (Watts∆t 50ºC) |
363 |
| Heat Output (BTU∆t 30ºC) |
648 |
Heat Output (BTU∆t 50ºC)
BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 50ºC is the standard output of boilers in the UK & Europe, so this figure is an indication of the heat output (BTU) your radiator will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU calculator.
Watts
Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.
By using our BTU calculator, you can calculate the number of watts your radiator needs to adequately heat your room.
Heat Output (BTU∆t 30ºC)
BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 30ºC is used for modern, energy efficient air source heat pumps where the flow temperature is lower. To find out the BTU you need for rooms in your home, take a look at our BTU Calculator.
