The Toasty Electric Underfloor Heating Mat 160W per m2 is a simple way to bring cosy, even warmth to the rooms you use every day. Its pre-spaced cable and flexible mesh mat make fitting quicker than loose cable, while the 160W per m2 output is designed for floor warming in all rooms, or full heating in well-insulated spaces. It can be laid directly beneath tile and stone floors, or used with a wide range of other floor coverings when covered with a suitable flexible levelling compound. Simple, comfortable warmth from the floor up.
The finer details:
The finer details:
- 160W per m2 electric underfloor heating mat for steady, comfortable floor warmth
- Suitable for floor warming in all rooms, or as sole source heating in well-insulated spaces
- Pre-spaced heating cable on a flexible mesh mat for quicker fitting than loose cable
- Cut-and-turn design makes it easier to work around room layouts without cutting the heating cable
- Suitable directly beneath tile and stone floors
- Can be used beneath virtually any other floor covering when first installed beneath a 12mm layer of flexible levelling compound
- Works with floor-limiting thermostats to help keep sensitive floor finishes protected
- Low-profile design with an approximate 4mm build height
- 0.5m mat width makes it easier to plan neat, even runs across the room
- Multiple mats can be combined to cover larger rooms, as long as they have the same wattage output per m2

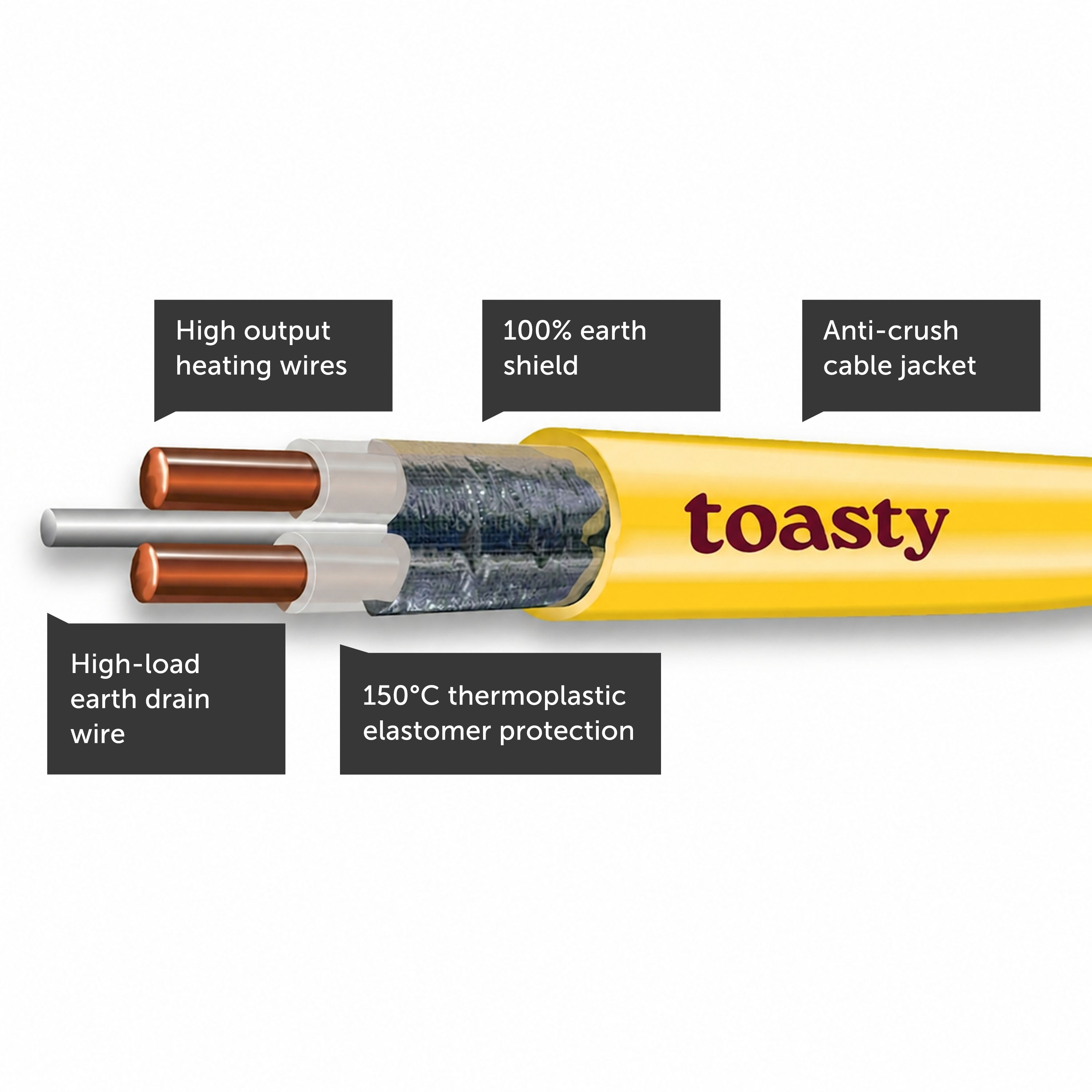

- Anti-crush cable jacket and 100% earth shield add extra reassurance underfoot
- 2.5m coldtail included for connection to a compatible thermostat
- Pair with the Toasty Programmable Thermostat Controller or Toasty WiFi Thermostat Controller for simple, reliable control
- UKCA marked and tested to BS/EN60335-2-96
- 20 year guarantee
 Installation Instructions
|
|---|
| Product Code | toasty-elec-ufh-160W/sqm-pv |
|---|---|
| Type | Underfloor Heating Mats |
| Brand | Toasty |
| Guarantee |
20 Years |
| Global Trade Item Number | Select an option first |
Guarantee
All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.
To read more about the guarantees we offer, visit our dedicated page or contact our team for more information.
| Fuel Source |
Electric |
|---|---|
| Temperature Control | Thermostatic |
| Material | Copper, PVC |
| IP Rating |
IPX7 |
| Mounting Type | Underfloor |
Fuel Source
This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.
Central Heating:
These radiators will generate heat through the water pumped round your central heating system.
Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.
Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.
IP Rating
IP stands for ingress protection. It is a measure of the effectiveness of sealing electrical enclosures from foreign bodies such as tools and water.
IP ratings are given in two digits:
1st digit: A number between 0-6 which gives an indication of the protection from solid objects such as tools, dirt and dust. The higher the number, the better the protection.
2nd digit: A number 0-9 which indicates the protection of the electrical enclosures from moisture ingress. The higher the number, the better the protection against moisture.
If you see an X instead of a number (e.g., IPX7 or IP6X), it means the product has not been officially tested for that specific category, as it may not be applicable.
| Width (mm) | 500 |
|---|---|
| Height (mm) | 4 |
| Cold Tail Length (mm) |
2500 |
| Cable Thickness (mm) | 4 |
| Area (sq. m) | Select an option first |
| Length (mm) | Select an option first |
Cold Tail Length (mm)
This is the non-heating cable that connects your system to the power supply.
The length shows how far it can reach from the mat to your connection point (measured in mm on our site).
A longer cold tail gives you more flexibility during installation — making it easier to position your heating exactly where you want it, without the need for extra wiring.
| Heat Output (BTU∆t 50ºC) | Select an option first |
|---|---|
| Heat Output (Watts∆t 50ºC) | Select an option first |
