Toasty Echo Anthracite Grey Oval Single Panel Vertical Mirror Radiator - 1800 x 500mm

No reviews yet - Write one

Loading delivery estimate...

Pay in 3 interest-free payments of £76.33.
Klarna
Pay in 3 interest-free payments of £76.33. Learn more
BTU 50ºC More information 2662
Fuel Source More information Central Heating
Material Steel
Guarantee More information 10 Years

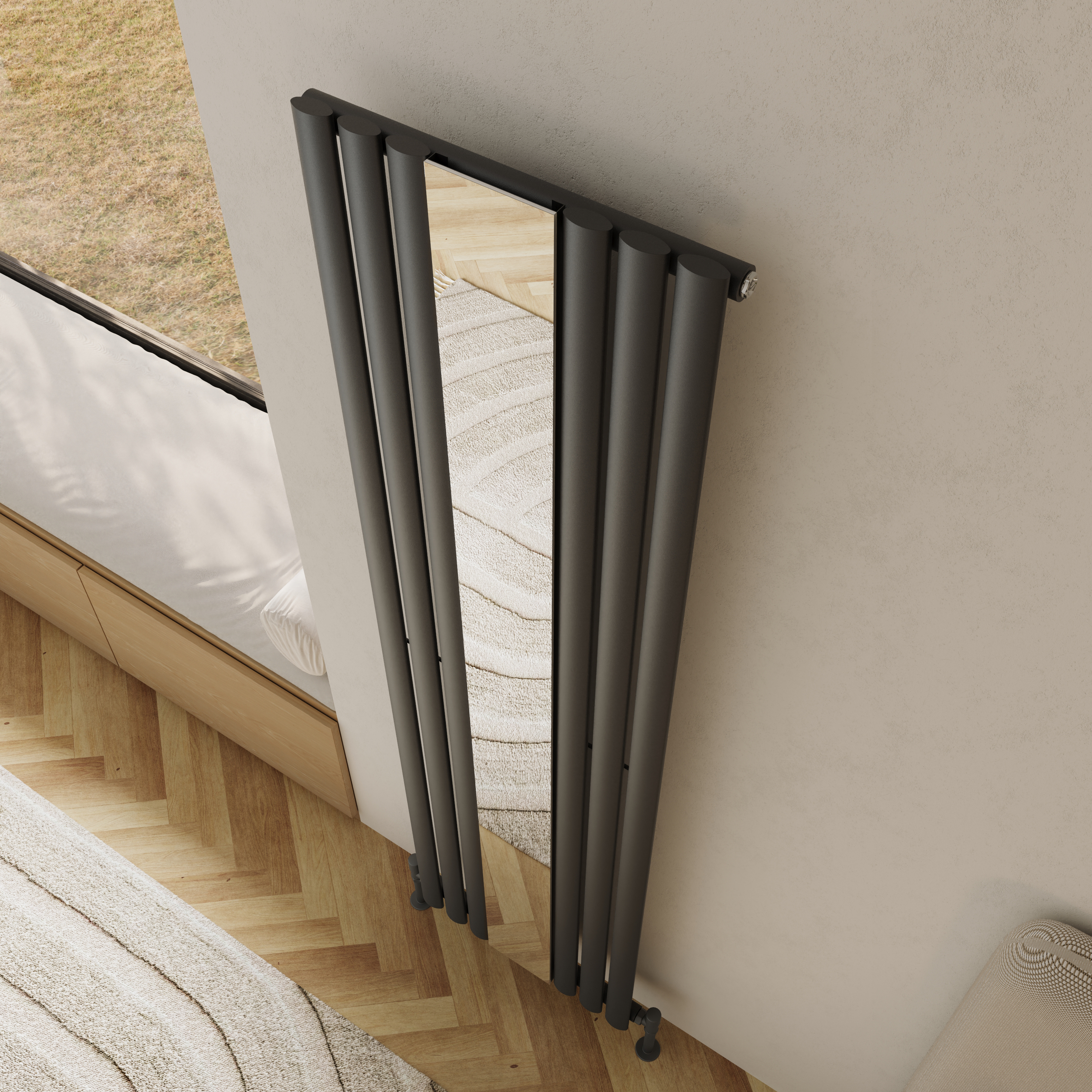

The Echo is a clever multi-tasker that's all about making your space feel bigger and warmer at the same time. Standing 1800mm tall with a generous 500mm width, it combines a single-panel radiator with a full-length mirror, so you don't have to sacrifice wall space for one or the other. The rounded oval tubes frame the glass in a textured anthracite finish, creating a confident, considered look that feels right at home on any wall in the house.

The finer details:
  • Tall 1800mm profile, featuring a large integrated mirror that helps to bounce light around the room
  • Sculpted oval tubes that provide a soft, rounded edge to contrast the sharp lines of the central glass
  • Neat single-panel depth that sits just 83mm from the wall once installed
  • Textured anthracite finish with a durable, matt surface that is designed to stay looking great for years
  • Made with high grade mild steel to ensure excellent heat conductivity and a reliable, steady output
  • Radiator valves are sold separately, you can find the ideal pair to complete the look in our recommended extras
  • Fully EN 442 certified and CE/UKCA marked for verified safety and heat ratings you can trust
  • Pressure tested at 1.3x to be more than a match for your heating system
  • Built in an ISO-certified factory that cares as much about the planet as it does about quality
  • 10 year guarantee

Product Overview
Product Code DES-162-AN
Type Designer Radiators, Designer Vertical Radiators, Panel Radiators, Single Panel Radiators, Vertical Radiators
Brand Toasty
Brand Range Toasty Echo
GuaranteeMore information 10 Years

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

To read more about the guarantees we offer, visit our dedicated page or contact our team for more information.


Features
Fuel SourceMore information Central Heating
Orientation Vertical
Mounting Type Wall Mounted
Material Steel

Fuel Source

This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.

Central Heating:
These radiators will generate heat through the water pumped round your central heating system.

Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.

Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.

Style
RAL CodeMore information 7016
Finish Texture Matt & Satin
Finish Anthracite
Shape Oval Panel
Style Modern

RAL Codes

RAL codes are used to define colours for paints & coatings. The codes are very specific, so two shades of blue will have a completely different RAL code. The codes can be useful if you want to ensure two different products will be a colour match.

Some of our heating products can be purchased in bespoke colours chosen from a selection of RAL codes. If you are interested in this service please contact our sales team here.

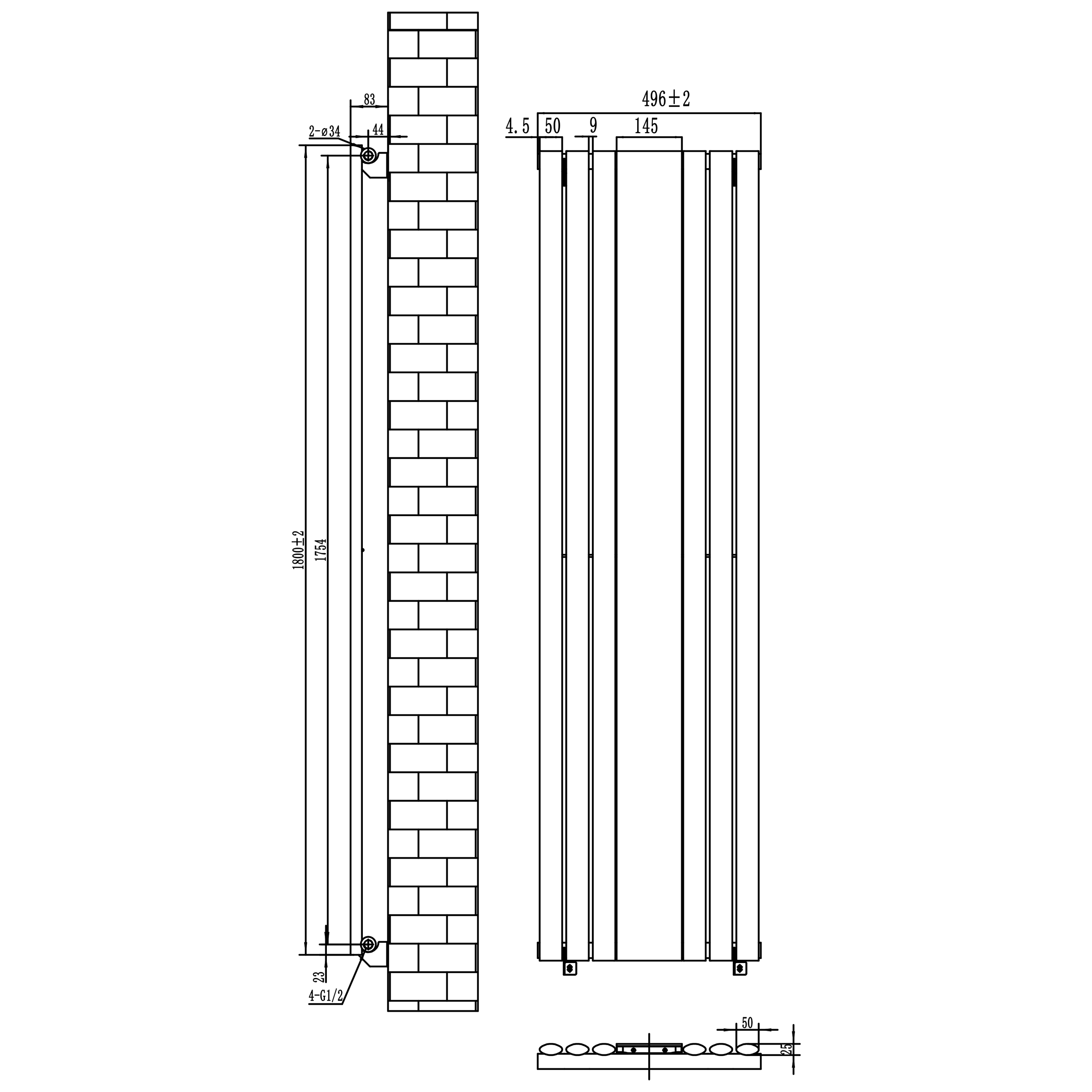

Dimensions
Wall to Face (mm)More information 83
Wall to Pipe Centres (mm)More information 44
Wall Distance (mm)More information 50
Tube Diameter (mm) 50
Number of SectionsMore information 6 Sections
Number of Tubes 6 Tubes
Width (mm) 496
Height (mm) 1800
Depth (mm) 83
Columns/Panels Single Panel
Pipe Centres (mm)More information 496

Wall to Face

Wall to face is the distance from the wall to the furthest point on the front of the radiator. This figure is an indicator of how far your product will protrude into the room.

Wall to Pipe Centres

This measurement will show you how far from the wall the centre of the pipes for your radiator will need to be. It is an indication of how far away the pipe inlets for the radiator need to be from the wall which is useful if you are looking to install a radiator using your existing pipework.

Wall Distance

This is a measure of the gap between the back of the radiator and the wall. Wall distance is an indication of how much space there will be behind your radiator.

Radiator Sections

When looking straight on at your radiator, this is the number of individual sections with gaps in between you’ll be able to see. A section can have multiple columns within it, the number of sections relates to how many rows of columns your radiator has.

Pipe Centres

This is the distance between the centre of the two pipe inlets on your radiator or towel rail. This figure is an indication of where the two pipes for your radiator will need to go and can be helpful if you want to install a radiator using your existing pipes.

Heat output
Heat Output (BTU∆t 50ºC)More information 2662
Heat Output (BTU∆t 60ºC)More information 3373
Heat Output (Watts∆t 50ºC)More information 780
Heat Output (BTU∆t 30ºC)More information 1357

Heat Output (BTU∆t 50ºC)

BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 50ºC is the standard output of boilers in the UK & Europe, so this figure is an indication of the heat output (BTU) your radiator will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU calculator.

Heat Output (BTU∆t 60ºC)

BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 60ºC was previously the standard output of boilers in the UK (the UK has now aligned with the rest of Europe to use ∆t 50ºC). BTU ∆t 60ºC is an indication the output in BTU your radiators will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU calculator.

Watts

Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.

By using our BTU calculator, you can calculate the number of watts your radiator needs to adequately heat your room.

Heat Output (BTU∆t 30ºC)

BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 30ºC is used for modern, energy efficient air source heat pumps where the flow temperature is lower. To find out the BTU you need for rooms in your home, take a look at our BTU Calculator.
