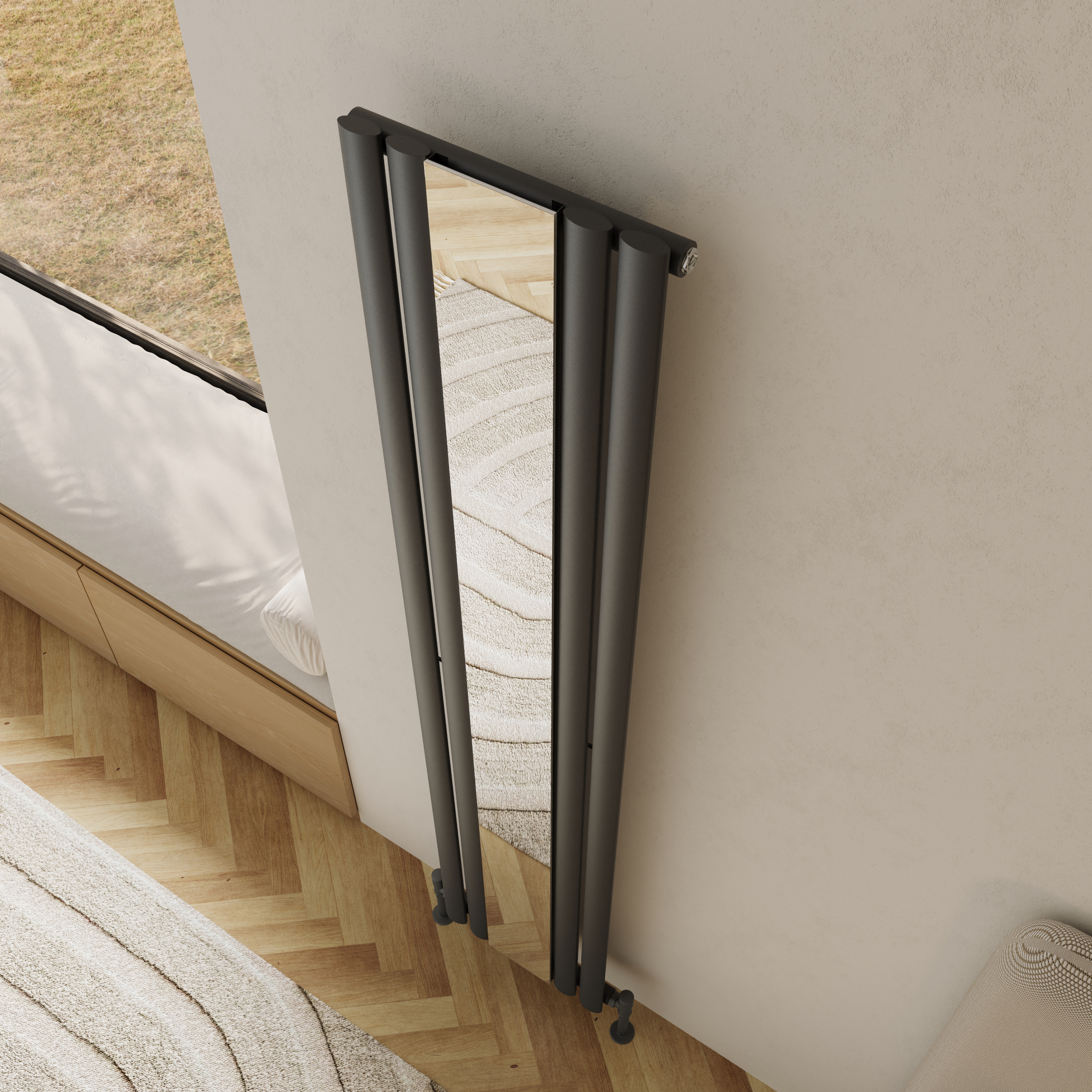

The Echo is the ultimate multi-tasker, designed for those who want their heating to work a little harder. Standing 1800mm tall but a remarkably slim 380mm wide, it makes a feature of narrow wall spaces that would otherwise be overlooked, combining a vertical radiator with a sleek, full-length mirror. The rounded oval tubes frame the glass in a textured anthracite finish, creating a soft, architectural look that’s perfect for any room of the house.
The finer details:
- Tall 1800mm profile with a slim 380mm width, featuring an integrated full-length mirror designed to make the most of narrow walls
- Sculpted oval tubes that provide a soft, rounded frame to contrast the sharp, clean lines of the central glass
- Neat single-panel design with a compact 83mm depth once installed, so it doesn't get in the way
- Textured anthracite finish with a tough, matt surface that is designed to stay looking great for years
- Made with high grade mild steel to ensure excellent heat conductivity and a reliable, steady output
- Radiator valves are sold separately, you can find the ideal pair to complete the look in our recommended extras
- Fully EN 442 certified and CE/UKCA marked for verified safety and heat ratings you can trust
- Pressure tested at 1.3x to be more than a match for your heating system
- Built in an ISO-certified factory that cares as much about the planet as it does about quality
- 10 year guarantee
| Product Code | DES-161-AN |
|---|---|
| Type | Designer Radiators, Designer Vertical Radiators, Panel Radiators, Single Panel Radiators, Vertical Radiators |
| Brand | Toasty |
| Brand Range | Toasty Echo |
| GuaranteeMore information | 10 Years |
Guarantee
All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.
To read more about the guarantees we offer, visit our dedicated page or contact our team for more information.
| Fuel SourceMore information | Central Heating |
|---|---|
| Orientation | Vertical |
| Mounting Type | Wall Mounted |
| Material | Steel |
Fuel Source
This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.
Central Heating:
These radiators will generate heat through the water pumped round your central heating system.
Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.
Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.
| RAL CodeMore information | 7016 |
|---|---|
| Finish Texture | Matt & Satin |
| Finish | Anthracite |
| Shape | Oval Panel |
| Style | Modern |
RAL Codes
RAL codes are used to define colours for paints & coatings. The codes are very specific, so two shades of blue will have a completely different RAL code. The codes can be useful if you want to ensure two different products will be a colour match.
Some of our heating products can be purchased in bespoke colours chosen from a selection of RAL codes. If you are interested in this service please contact our sales team here.

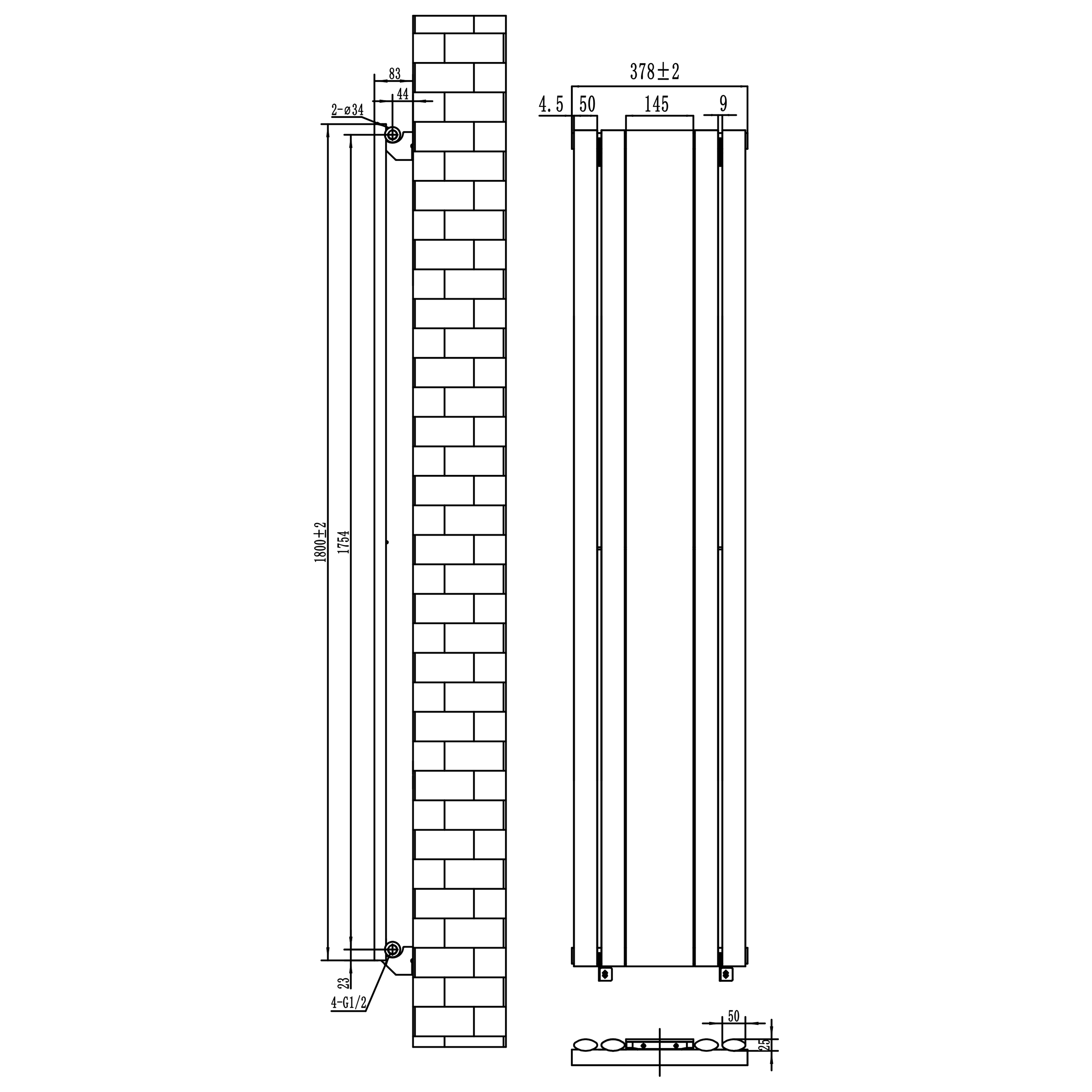

| Wall to Face (mm)More information | 83 |
|---|---|
| Wall to Pipe Centres (mm)More information | 44 |
| Wall Distance (mm)More information | 50 |
| Tube Diameter (mm) | 50 |
| Number of SectionsMore information | 4 Sections |
| Number of Tubes | 4 Tubes |
| Width (mm) | 378 |
| Height (mm) | 1800 |
| Depth (mm) | 83 |
| Columns/Panels | Single Panel |
| Pipe Centres (mm)More information | 378 |
Wall to Face
Wall to face is the distance from the wall to the furthest point on the front of the radiator. This figure is an indicator of how far your product will protrude into the room.
Wall to Pipe Centres
This measurement will show you how far from the wall the centre of the pipes for your radiator will need to be. It is an indication of how far away the pipe inlets for the radiator need to be from the wall which is useful if you are looking to install a radiator using your existing pipework.
Wall Distance
This is a measure of the gap between the back of the radiator and the wall. Wall distance is an indication of how much space there will be behind your radiator.
Radiator Sections
When looking straight on at your radiator, this is the number of individual sections with gaps in between you’ll be able to see. A section can have multiple columns within it, the number of sections relates to how many rows of columns your radiator has.
Pipe Centres
This is the distance between the centre of the two pipe inlets on your radiator or towel rail. This figure is an indication of where the two pipes for your radiator will need to go and can be helpful if you want to install a radiator using your existing pipes.
| Heat Output (BTU∆t 50ºC)More information | 1816 |
|---|---|
| Heat Output (BTU∆t 60ºC)More information | 2301 |
| Heat Output (Watts∆t 50ºC)More information | 532 |
| Heat Output (BTU∆t 30ºC)More information | 926 |
Heat Output (BTU∆t 50ºC)
BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 50ºC is the standard output of boilers in the UK & Europe, so this figure is an indication of the heat output (BTU) your radiator will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU calculator.
Heat Output (BTU∆t 60ºC)
BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 60ºC was previously the standard output of boilers in the UK (the UK has now aligned with the rest of Europe to use ∆t 50ºC). BTU ∆t 60ºC is an indication the output in BTU your radiators will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU calculator.
Watts
Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.
By using our BTU calculator, you can calculate the number of watts your radiator needs to adequately heat your room.
Heat Output (BTU∆t 30ºC)
BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 30ºC is used for modern, energy efficient air source heat pumps where the flow temperature is lower. To find out the BTU you need for rooms in your home, take a look at our BTU Calculator.
