Brenton Type 11 Compact Single Convector Panel Radiator

No reviews yet - Write one

Click the image to zoom
Click the image to zoom
Click the image to zoom
Click the image to zoom

Height:

Width:

Select quantity

Loading delivery estimate...

Pay in 3 interest-free payments of £14.00.

Pay in 3 interest-free payments of £14.00. Learn more

BTU 50ºC More information Select an option first

Fuel Source More information Central Heating

Material Steel

Guarantee More information 10 Years

What's great about it?

Type 11 radiator has 1 panel and 1 convector fin for better heat transfer and faster warming
Slim, compact design is perfect for smaller rooms with limited space
Constructed from quality mild steel, each radiator is internally welded and finished in glossy white enamel

Full details

Toasty extras

Our favourites to pair with this beauty

The finer details:

Offers one of the highest heat outputs available on the UK market for comparable sizes, ensuring faster room heating and greater efficiency

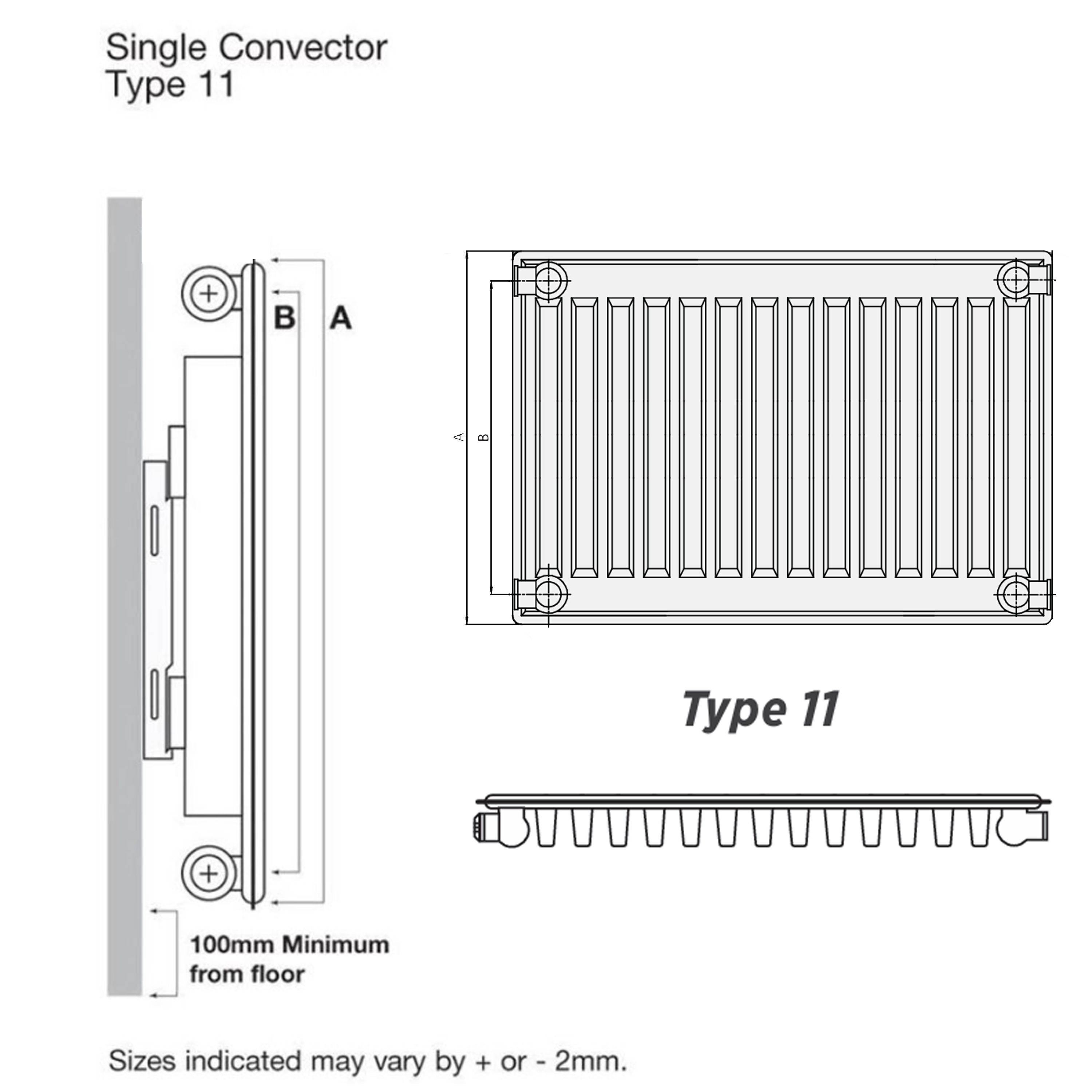

The Type 11 convector radiator features 1 heating panel and 1 convector fin, designed to increase surface area and improve heat transfer into the room
Compact, slim profile is ideal for smaller rooms where space may be limited
Convector fins increase the radiator’s surface area, enabling faster and more even heat distribution throughout the room
Convector fins also provide faster warm-up times by quickly transferring heat to the air, warming spaces more efficiently than panel-only radiators
Suitable for operating pressures up to 10 bar and temperatures up to 120°C, making the radiator ideal for high-performance systems and ensuring reliability in demanding conditions
Available in a huge range of sizes to suit different spaces and heating needs
Made from high-quality mild steel, each radiator is internally welded and finished in white enamel with a gloss finish (RAL9016)
Advanced coating offers superior corrosion resistance for a durable, long-lasting finish
Manufactured under BS EN ISO 9001 quality system and outputs comply with EN442, ensuring reliable performance and consistent quality
Suitable for two-pipe systems
Includes factory-fitted top grille and side panels to cover internal components, prevent dust and debris ingress, and reduce the risk of injury from contact with hot surfaces, enhancing both safety and appearance
Fixing kit included, complete with brackets, bolts, vents, plugs, fixing points and tappings
The robust bracket design features open tops and deep slots to ensure quick, secure, and straightforward installation
10 year manufacturer's guarantee

Product Overview
Product Code	brenton-type-11-comp-radiator
Type	Horizontal Radiators, Panel Radiators, Single Panel Radiators
Brand	Brenton
Brand Range	Brenton Convectors
GuaranteeMore information	10 Years

Features
Fuel SourceMore information	Central Heating
Mounting Type	Wall Mounted
Material	Steel
Orientation	Select an option first

Style
RAL CodeMore information	9016
Finish Texture	Gloss
Finish	Gloss White
Shape	Flat Panel
Style	Modern

Dimensions
Wall to Face (mm)More information	68
Wall to Pipe Centres (mm)More information	40
Wall Distance (mm)More information	20
Depth (mm)	56
Width (mm)	Select an option first
Height (mm)	Select an option first
Columns/Panels	Select an option first
Pipe Centres (mm)	Select an option first

Heat output
Heat Output (BTU∆t 50ºC)	Select an option first
Heat Output (BTU∆t 60ºC)	Select an option first
Heat Output (BTU∆t 30ºC)	Select an option first
